Giesse – CHIC Door 160
Functions

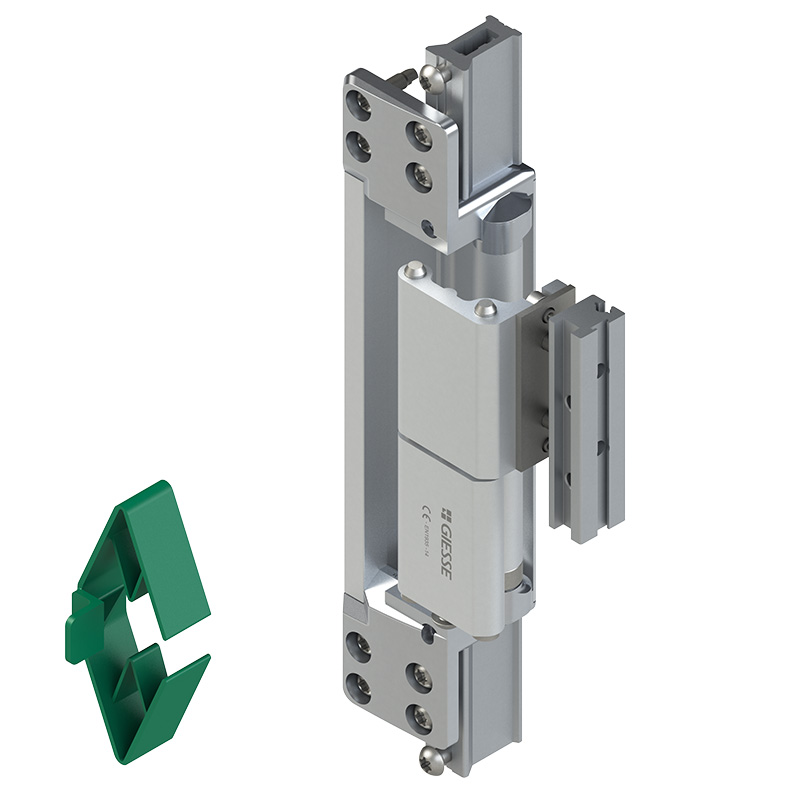

Reversible door hinge, to be applied inside the profiles for complete invisibility when the door is closed and adjustable in three directions (width, height and compression).
Technical Characteristics
Hinge with concealed installation, suitable for aluminium doors, even of large size, which meet most of the residential, commercial and public applications.
An innovative system (patented) makes hinge installation and sash to frame coupling easier, even in the case of doors installed in architectural stack.
Reduced profile machining and functional fixing devices on the hinge facilitate the doors production, reducing their production times.
CHIC Door 160 is adjustable in three directions:
- Side adjustment (+/- 3 mm.), using an Allen key on the hinge adjusters.
- Height adjustment (- 2 /+ 3 mm.), using an Allen key on the adjustment screw.
- Compression adjustment (+/- 1 mm.), obtainable by turning the screws on the sash hinge body.
Hinge tested in compliance with EN1935.
Functions
Reversible door hinge, to be applied inside the profiles for complete invisibility when the door is closed and adjustable in three directions (width, height and compression).
Capacity
160 kg with 2 hinges
Extruded aluminium hinge bodies and upright
Main pin in white anodised turned aluminium
Bases and anchors in sealed white galvanised zamak
Axial bearing, adjustment plate and secondary stainless steel pins
Extruded aluminium fixing plates
Stainless steel screws and spring
Hostaform bushing
POM template
