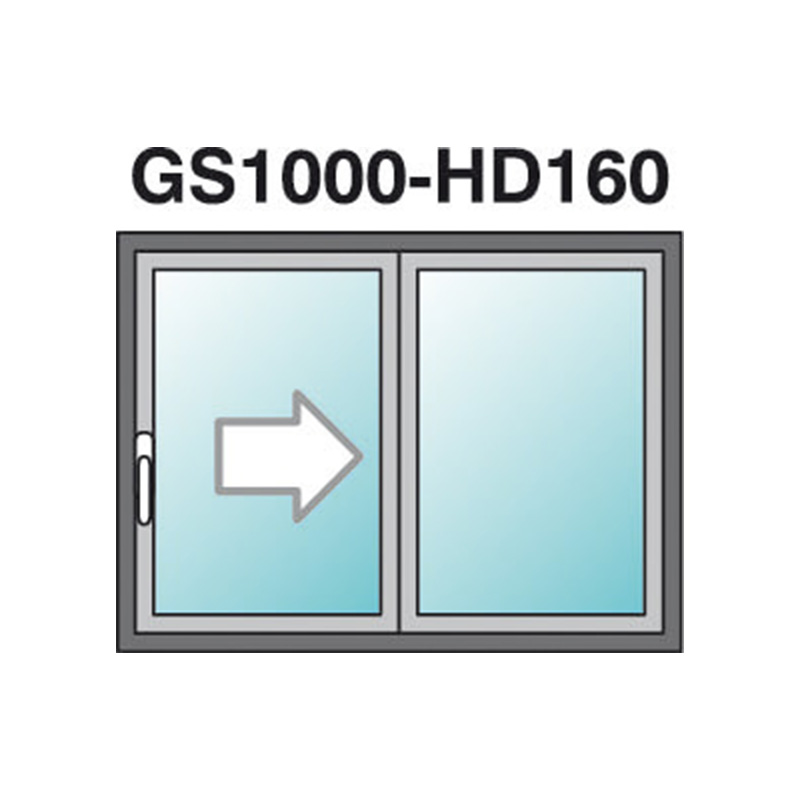

Giesse – GS1000-HD 160
Functions
Tilt and slide system with semi-automatic forced control operation that allows closing the sash with just one hand, by operating the long-handled cremone.
For applications with sashes weighing up to 160 kg.
Available for Euro groove profiles.
Technical Features
GS1000-HD 160 is ideal for sashes of up to 160 kg in weight, for those who want semi-automatic operation.
Uses single pulleys with machined side plugs and reinforcements.
GS1000 HD-160 is available in the configuration for the Euro groove profile and uses special fastening mechanisms specifically designed for aluminium.
All the hardware components are equipped with Torx fixing screws.
The hardware set uses fixed lock strikers and compression adjustable lock pawls (±1.2 mm), with which you can optimize the perimeter pressure of the sash.
It is possible to add up to two additional locking points on the top and bottom cross-beams, depending on the size of the sash, to improve the air/water seal.
