Giesse – GS3000-300/400 LIFT AND SLIDE

Functions
Lift and slide hardware system to construct sashes from 300 to 400 kg.

Technical Features
The GS3000-300/400 system is composed of:

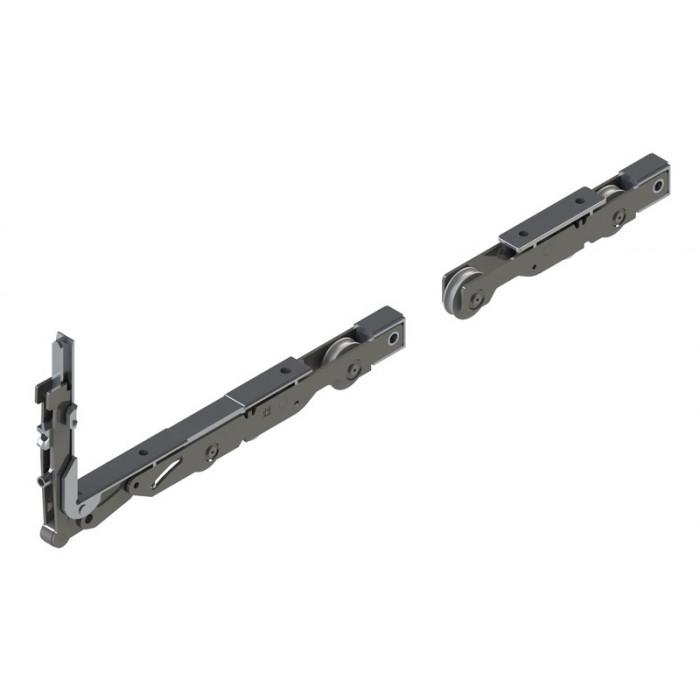

• 300/22 pulleys (300 kg) for seating in profiles with 22 mm slot and 42 mm slot/track distance, for sashes up to 300 kg
• additional pulley, in addition to the 300/22 pulleys, to be em-ployed for the following cases:
• 1 additional pulley for sashes wider than 2500 mm and up to 300 kg
• 2 additional pulleys for sashes up to 400 kg in weight and width >1300 mm
• pulleys connection rod for drive transmission from main to se-condary pulley. DEREK To be selected on the basis of sash width
• driving rod with 27.5 mm backset and 37.5 with key, type GS3000 or GS3000 PLUS. The backset depends on the profile employed and the length of the rod depends on the sash height
• locking points to assemble to the frame in the case of the GS3000 or on the driving rod in the case of the GS3000 PLUS, to be selected according to the profile used. The number of mechani-sms depends on the sash height
  shims to be selected in accordance with the profile, drive gear and type of locking point employed
  window handle with 80 mm fixing C/C distance, available in KORA, ASIA and PRIMA styles, in single version without key and single/double with key.
  external recess handle with 80 mm fixing C/C distance
